VPASS Vaporized Pracetic Acid Decontamination System

NP870_VPSAA-1-860x645 (1)

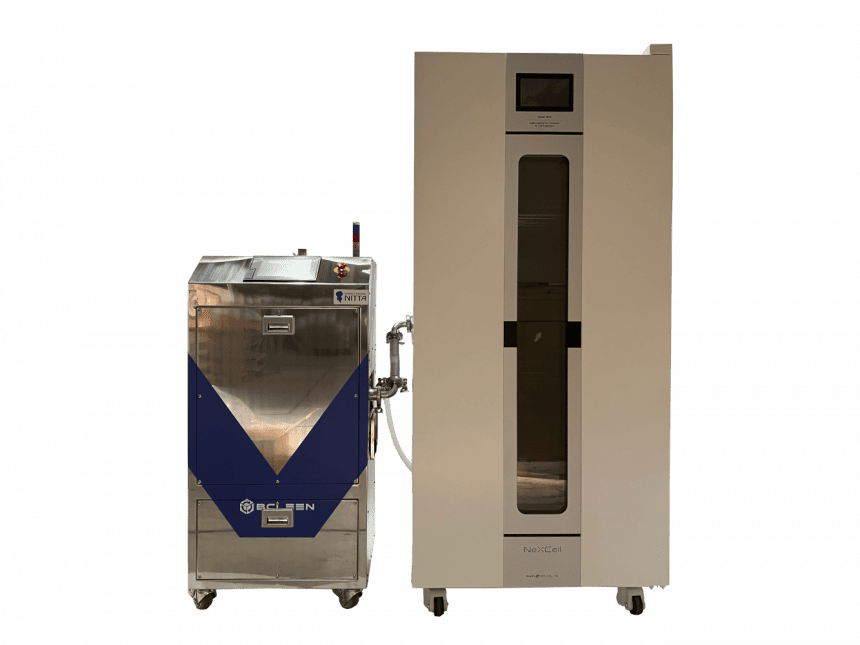

with CO2 incubator

vpass_cabi-860x601

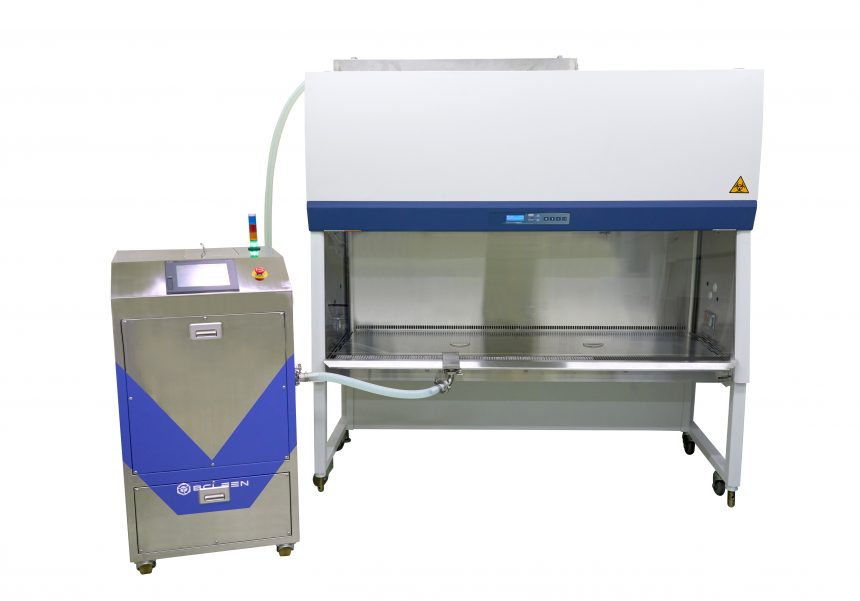

with Safety cabinet

VPASS is a decontamination system that vaporizes peracetic acid-based disinfectants and disperses them to every corner of a sealed space, leveraging the powerful sterilizing action of peracetic acid to decontaminate the interiors of laboratory equipment.
Because vaporized peracetic acid (VPA) can pass through HEPA filters, it can decontaminate the entire apparatus, including the HEPA filters themselves.
The system can be used for decontamination prior to the maintenance of biosafety cabinets (BSCs) or CO2 incubators, as well as for decontamination before removing BSCs from a facility.

Features

• Ensures safety using a low-concentration vaporized peracetic acid (approx. 30 ppm)
• Capable of achieving a 6-log or greater reduction of biological indicators
• Fully automated decontamination and chemical recovery processes minimize operational variance caused by operator experience
• The recirculation system design allows other tasks to be performed simultaneously in the same room during decontamination
• Eliminates the need for post-decontamination neutralization or prolonged aeration, thanks to chemical recovery via the filter unit
• Supports validation processes (CSV, IQ/OQ)

Overview of decontamination workflow

Peracetic acid vaporized inside the tank unit circulates throughout the target apparatus, decontaminating the entire interior, including the HEPA filter.
In the final process, the built-in filter unit removes the vaporized peracetic acid and reduces the acetic acid odor.
