NeXCell R, Automated CO2 Incubator
CO2 Incubator suitable for cell culture based automation platform
Details:
- Suitable for Automated Systems
Suitable for combination with the Cell Imager, and Automated Liquid handler system. - Good Selection of Models

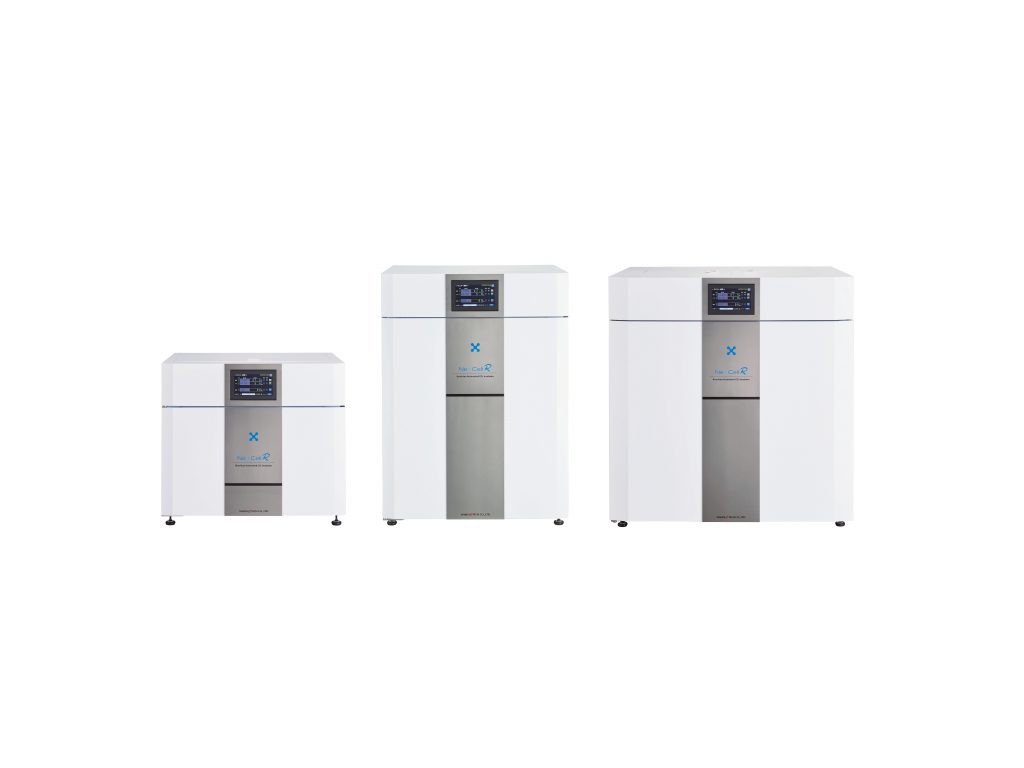

There are 4 different plate capacities, 28, 48, 100 or 150 plates. - Precise Contorol
Precise control of the environment, Temperature and CO2, optional low O2. - High Cleanliness
Internal HEPA filter which gives ISO Class 5 (CLASS100) air quality within 10 minutes. - Good Operability
The built-in Color LCD touch screen allows full control and management all of features. - Cassette Hotel

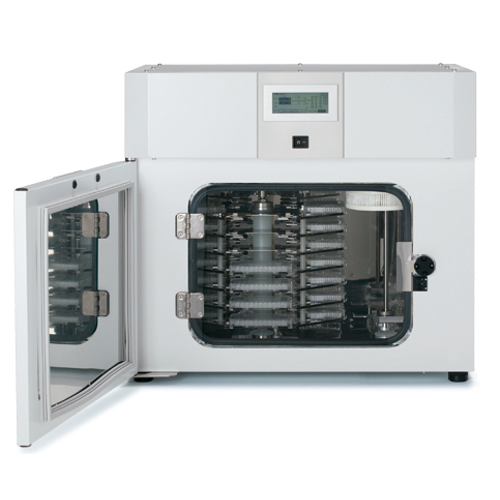

The cassette hotel can be easily removed and replaced. - High Storability
The incubator can accommodate a range of different culture vessels such as microplates and Petri dishes and T25/T75/T175 flasks. - High Stability
The automated shutter minimizes environment deviation in the chamber. - Inerface
Communication Interface: RS232 (RS485), Ethernet.
Option/Specialties:
- Low O2 control (Using N2 gas).

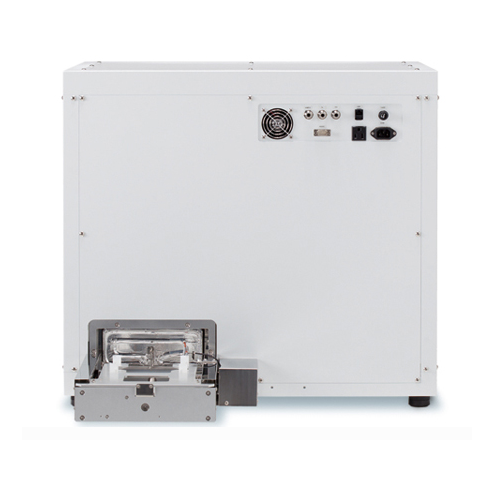

- Optional extended sliding plate stage.
- Automatic ultrasonic humidity control device.
- VHP device for H2O2
- Side Gate model: Shutter and sliding plate stage located on right hand side.
- Optional integrated barcode reader.
- The incubator can be connected to a Cell processing Isolator or Bio Safety Cabinet.
| Items | Description | |||
|---|---|---|---|---|
| Model | NR48 | NR100 | NR150 | |
| Supply voltage | AC100V 50/60Hz 500VA | AC100V 50/60Hz 600VA | AC100V 50/60Hz 800VA | |
| Outer dimensions (mm) * | 740(W) × 607(D) ×668(H) | 740(W)×607(D)×1030(H) | 980(W)×816(D)×1030(H) | |
| Inner dimensions (mm) | 620(W) × 475(D) ×391(H) | 620(W)×475(D)×721(H) | 857(W)×653(D)×721(H) | |
| Chamber volume (L) | 115 | 210 | 400 | |
| Approx. Weight (kg) | 85 | 120 | 200 | |
| Slider Length (mm) | 240 | |||
| Body material /paint | Chamber: SUS304/ Uncoated #200 or more Exterior: Cold-rolled steel / Baked powder coat finish |
|||
| Outer door | Left hinged / Right hinged (Factory option) | |||
| Humidification | Natural evaporation with water pan (Ultrasonic Humidifier is available) | |||
| Air circulation | Circulation with DC blower (through a HEPA filter) | |||
| CO2 gas supply | 9.7% or more/Supply gas pressure = 0.1 ±0.05MPa | |||
| N2 gas supply | 99.9% or more/Supply gas pressure = 0.1 ±0.05MPa | |||
| Number of slots | 12 slots / 4 pos. | 25 slots / 4 pos. | 25 slots / 6 pos. | |
| Capacity | 48 | 100 | 150 | |
| Type of storage | Short cassette | Long Cassette | Long Cassette | |
| Container type | 150mm/100mm petri dishes, micro plates, T25/T75 Flask T175, HyperFlasks (only available for NR150) |
|||
| Environment | Temp.15–30˚C / RH 20–70% | |||
| Temperature control | Sensor | Pt100 (Class A) | ||
| Control range (˚C) | Room temperature +8 – +30 (up to 50 ˚C) | |||
| Control accuracy (˚C) | (1) 37.0˚C ±0.5˚C (2) RT+30.0˚C(Up to 50˚C) | |||
| Uniformity (˚C) | Control point (center of the chamber) ±1.0 | |||
| CO2 control | Sensor | NDIR | ||
| Control range (%) | 0–20.0 | |||
| Control accuracy (%) | ±0.5 | |||
| O2 control | Sensor | Zirconia system | ||
| Sets range (%) | 1.0–20.0 | |||
| Control accuracy (%) | ±1.0 | |||
| Average time for Robotics | Max 25 sec. for loading/unloading | |||
* Outer dimensions do not include sliding plate Stage
RT: Standard temperature is between 22.0–25.0˚C
