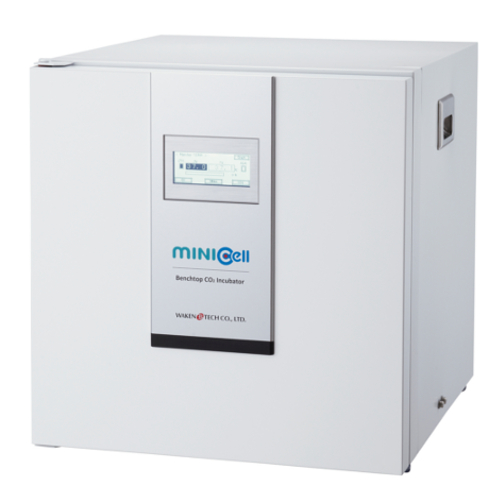

MINIcell-35, Compact CO2 Incubator
MINIcell-35 is a definitive version of small-scale model that is designed to be easy to use even in small laboratory. Advantages of our conventional models are retained, while new functions are added for further improvement to provide support for cell culture experiments.
Details
- Both compact size and large capacity

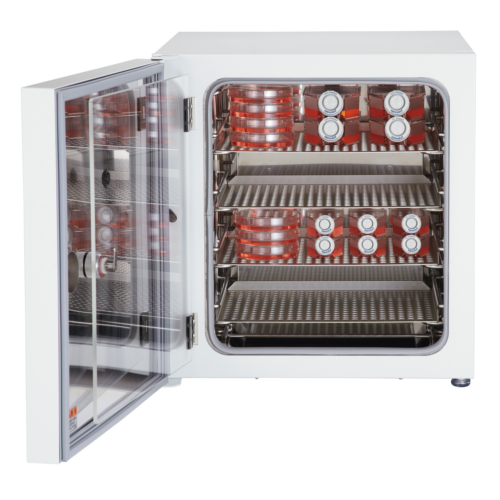

Maximum chamber capacity is secured, although the product is a desktop model. A single chamber can accommodate 40 qty of T25 flasks, 12 qty of T75 flasks or 8 qty of T175 flasks for culture. - Equipped with high performance IR CO2 sensor
A high performance IR (infrared) sensor, which is not affected by temperature and humidity variations. - Bright and clearly visible touch screen
The model is equipped with an LCD touch screen that facilitates intuitive control of parameters and various types of settings. - Low oxygen control function (optional)
Low concentration of oxygen control feature can be added easily by installing O2 control kit. - External output function (optional)

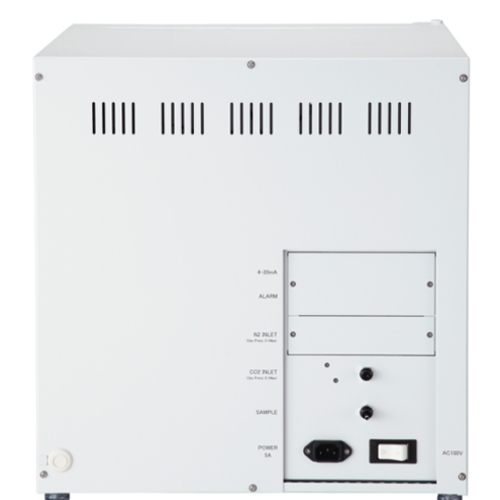

An external output kit can be installed to use alarm and analog outputs (4 to 20 mA and alarm). - Featuring dual level stacking
A stackable kit is sold separately, which can be used to easily stack and secure the model on two levels.
| Catalog No. | WKN-MC35 | |
|---|---|---|
| Number of chambers | 1 chamber | |
| Capacity (L) | 35 | |
| Temperature | Range (℃) | Room temperature +5 to 45 |
| Display accuracy | ±0.1 (at 37℃) | |
| CO2 concentration | Range (%) | 0 to 18 |
| Display accuracy | ±0.5 | |
| O2 concentration | Range (%) | 1.0 to 20.0 |
| Display accuracy | ±0.5 | |
| O2 sensor | Galvanic battery type | |
| Humidification System | Natural evaporation system (sterile distilled water injected on the bottom surface of the chamber) | |
| Number of shelves | 4 levels; shelf dimensions: 310 W x 230 D mm | |
| Shelf load capacity (Kg) | 5 | |
| Power supply | AC100-240V 50/60 Hz | |
| External dimensions (mm) | 450 W x 524 D x 466 H | |
| Internal dimensions (mm) | 350 W x 300 D x 400 H | |
| Weight (Kg) | 32 | |
