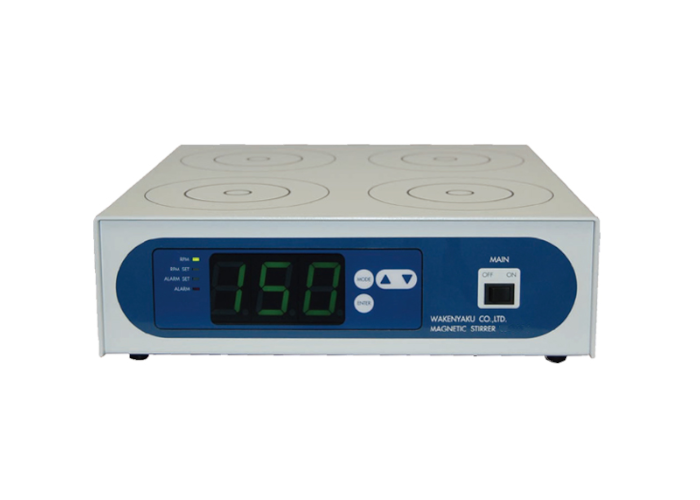

Humidity-Proof Magnetic Stirrer (4 Positions)
Our uniquely designed magnetic stirrer can be set from low rotation rate to high rotation rate.
It offers an optimal rotation rate and great reproducibility for each cell line.
It offers an optimal rotation rate and great reproducibility for each cell line.
Details
- Display panel with good visibility
Operators can check the current rotation rate at a glance with a large display panel on the front. - Long durable life
With less heat due to DC brushless motors, having long durable life and being usable under the high humidity location like the inside of incubators. - Stability of rotation rate
Due to feedback on the rotation rate of DC brushless motor to a control circuit, offering stable rotation rate even under the high loaded condition. - Error alarm
With a buzzer as an alarm, informing operators the occurrence of system error if the motor stops. - 4-20ｍA output
4-20mA external output for rotation speed is standard.
| Catalog number | WKN-1104-1L | WKN-1104-3L |
|---|---|---|
| Rotation rate range (rpm) | 10 -150 | |
| Position | 4 | |
| Vessel | 1L Frask × 4 | 3L Frask × 4 |
| Dimensions (mm) | 350（W）×350（D）×100（H） | 400（W）×400（D）×111.5（H） |
| Operating environment | Temp : -10 - 45 ℃ RH : 10 - 95% |
|
| Weight (kg) | 5.5 | |
| Power supply | AC100-240V 50/60Hz 80W | |
| Output | 4-20mA (Rotation speed) | |
| Alarm contact | Yes | |
