Roller Cell Culture Apparatus
The latest model equipment with proven track record for rotary culture has emerged.
This is a system for using culture roller bottles in mass cultivation of adherent cells. Advantages of conventional imported systems were utilized, while incorporating improvements that are available only with domestic products, suitable for manufacturing applications.
Details
- Compatibility with conventional products
Installation dimensions of this system is completely compatible with products made by Chemglass Life Sciences of the United States. The product can be used while accommodated in a large incubator (MaxCell Giant). - Body made out of stainless steel
The base unit is made entirely of stainless steel, which is easy to clean and offers robust resistance against corrosion. - Broad range of rotation speeds
A wide range of rotation speed can be set, from ultra-low speed of 0.05 rpm to maximum 2 rpm. The model is ideal for ultra-low speed operations for cell seeding as well. - Automatic rotational speed correction function
When the roller bottle diameter is changed, rotational speed can be corrected automatically simply by entering numerical value for the diameter. - Superior scalability
Each shelf can hold five bottles and with up to ten shelves the system can accommodate maximum of 50 roller bottles. This capacity can be easily increased to maximum of 10 levels. - Rotation anomaly detection function
Alarm is sounded to notify anomaly rotation is detected. - All position drive function
The all position drive function enables roller bottle driving in all positions. - Fitted with casters for mobility
In addition to casters that bring mobility, the product features adjuster feet for level adjustments.
| Catalog Number | WKN-2201 |
|---|---|
| Maximum number of decks | 10 shelves (50 bottles) |
| Recommended bottle diameter | 90 to 120 mm (max. Length 528 mm) |
| Roller material | Ethylene propylene rubber (EPDM) |
| Main body material | Stainless steel (SUS304)/No coating, hairline |
| Rotation speed setting range | 0.05 to 2.00 rpm |
| Rotation speed display accuracy | ±0.02 rpm |
| Actual rotation speed accuracy | Set value ±10% |
| Weight | Base unit: 19 kg Additional deck unit: 13 kg |

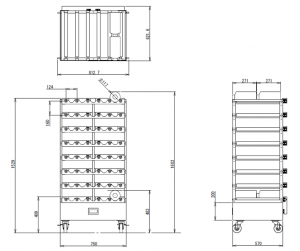

| External dimensions | 812.7 (W) × 621.6 (D); see table on right for height |
| Power supply | AC100-240V (50/60Hz) |
| Operating environment | 5 to 40°C; Maximum 80% RH (No condensation) |
| Number of shelves | Base unit height (mm) | Including bottles (mm) |
|---|---|---|
| 1 shelf | 409 | 483 |
| 2 shelves | 569 | 643 |
| 3 shelves | 719729 | 803 |
| 4 shelves | 889 | 963 |
| 5 shelves | 1049 | 1123 |
| 6 shelves | 1209 | 1283 |
| 7 shelves | 1369 | 1443 |
| 8 shelves | 1529 | 1603 |
| 9 shelves | 1689 | 1763 |
| 10 shelves | 1849 | 1923 |
* Indicated height including bottles is for 117 mm diameter bottle setup.
