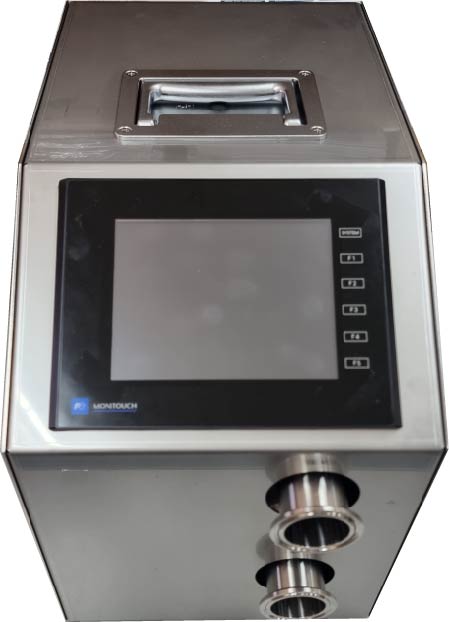

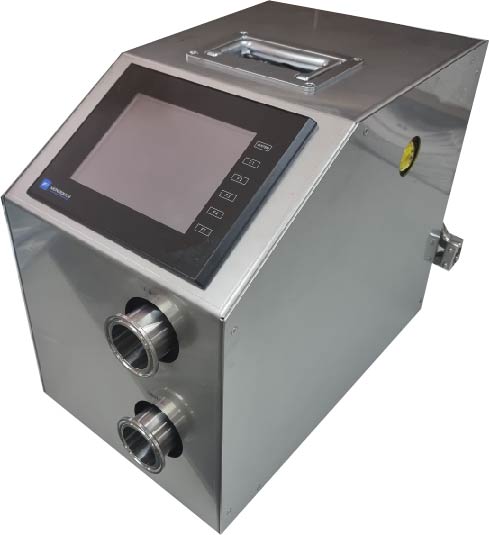

PASSTECH S50 VPHP decontamination system
Closed Loop
Touch screen interface
Easy to operate
The PASSTECH S50 is a closed-loop type decontamination system upgraded from the conventional model PASSTECH S1Lite. You can control and monitor decontamination parameter and process status using the built-in touch panel intuitively and easily.
Compared to the PASSTECH S1Lite, the PASSTECH S50 offers twice the decontamination capacity. The unit also delivers high-level decontamination performance even for isolators with HEPA filters. It supports I/O signal control, enabling seamless integration into isolators, decontamination pass boxes, and other automated systems.
Applicable equipment
- Biosafety cabinet
- Isolator
- Freeze dryer
- Decontamination passbox
| Item No. | PASSTECH S50 |
|---|---|
| Support decontamination volume | Up to 50 m3 (cubic meters) when using 60% solution. |
| Decontamination method | Closed loop, Dry |
| Injection rate | 0.6 - 3.0mL/min |
| Dimensions (WDH) | 230 x 360 x 310 mm |
| Weight | 16.4 kg |
| Power | 100 - 200V (50/60Hz) |
| Aeration | Built-in catalyst |
| Dehumidification | Dedicated moisture absorber. (sold separately) |
| Validation | IQ/OQ |
| Support equipment | BSC, Isolator, Freeze dryer, Passbox |
