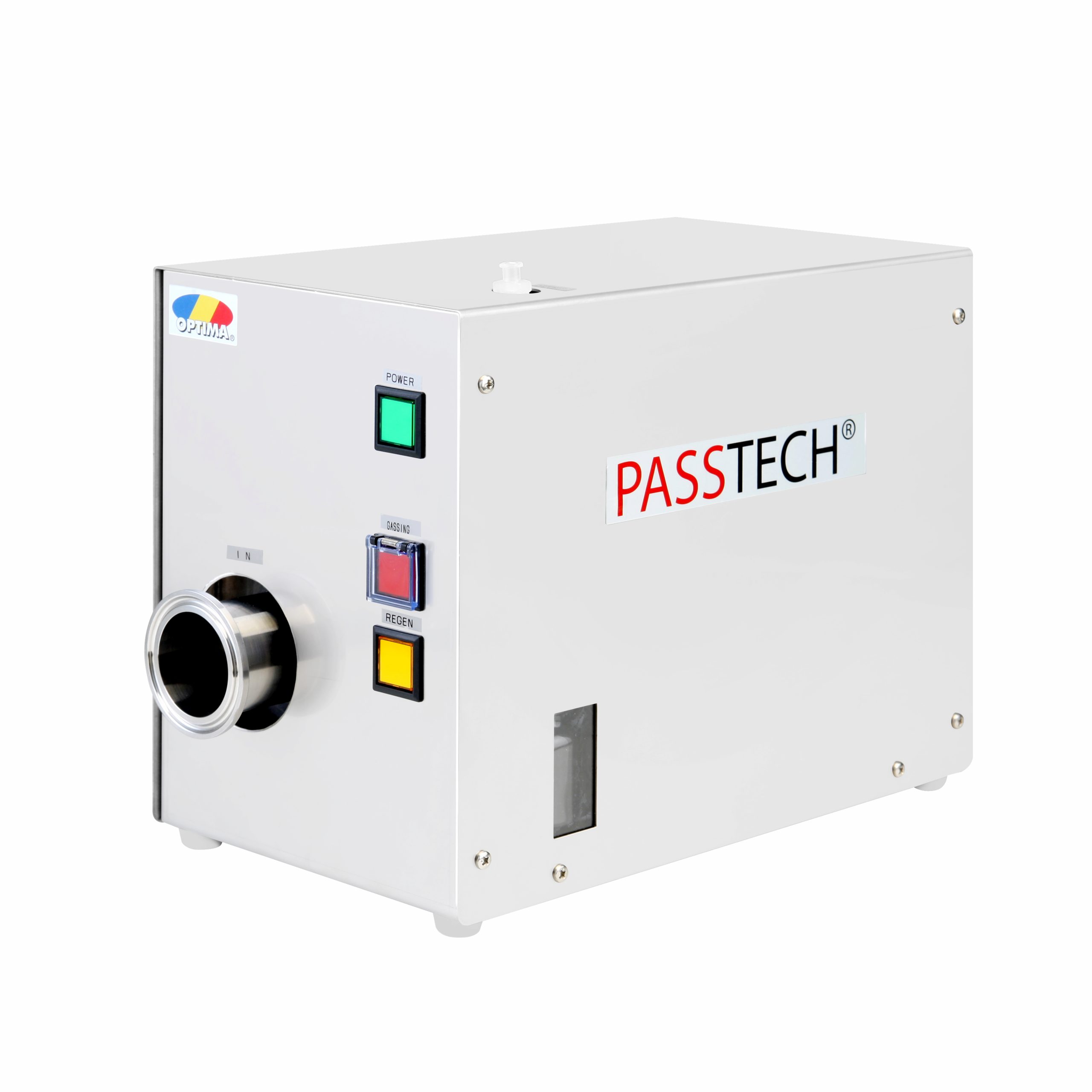

PASSTECH S1Lite VPHP decontamination system
Closed Loop
Simple
Inhection Rate Controllable
Unlike conventional systems, the PASSTECH S1 Lite does not need to be physically placed inside the target space. Thanks to supply and return ports, it enables closed-loop decontamination by circulating air within the sealed environment. It can also be seamlessly integrated into devices such as isolators or pass boxes.
Applicable equipment
- Biohazard safety cabinet
- Passbox/ Passroom
- No residue. (H2O2 breaks down into H2O and O2)
- CO2 incubator
- Freez dryer
- Animal research facility
- LN2 cryopreservation container
*The diameter of the Return/ Supply port can be changed. Normally, It is normally supplied with 1.5S Ferrule.
| Item No. | PASSTECH S1Lite |
|---|---|
| Aupport decontamination volume | Up to 24m3 (cubic meters) when using 60% solution) |
| Decontamination method | Closed loop, Dry |
| Drip rate | 0.6 - 2.0 mL/ min |
| Dimensions (WDH) | 150 x 250 x 200 mm |
| Weight | 7.5 kg |
| Power | 100-220V (50/60Hz) |
| Aeration | Built-in catalyst |
| Dehumidification | Built-in moisture absorber (Reusable) |
| Validation | IQ/ OQ |
| Applicable wquipment | BSC, Isolator, Passbox |
