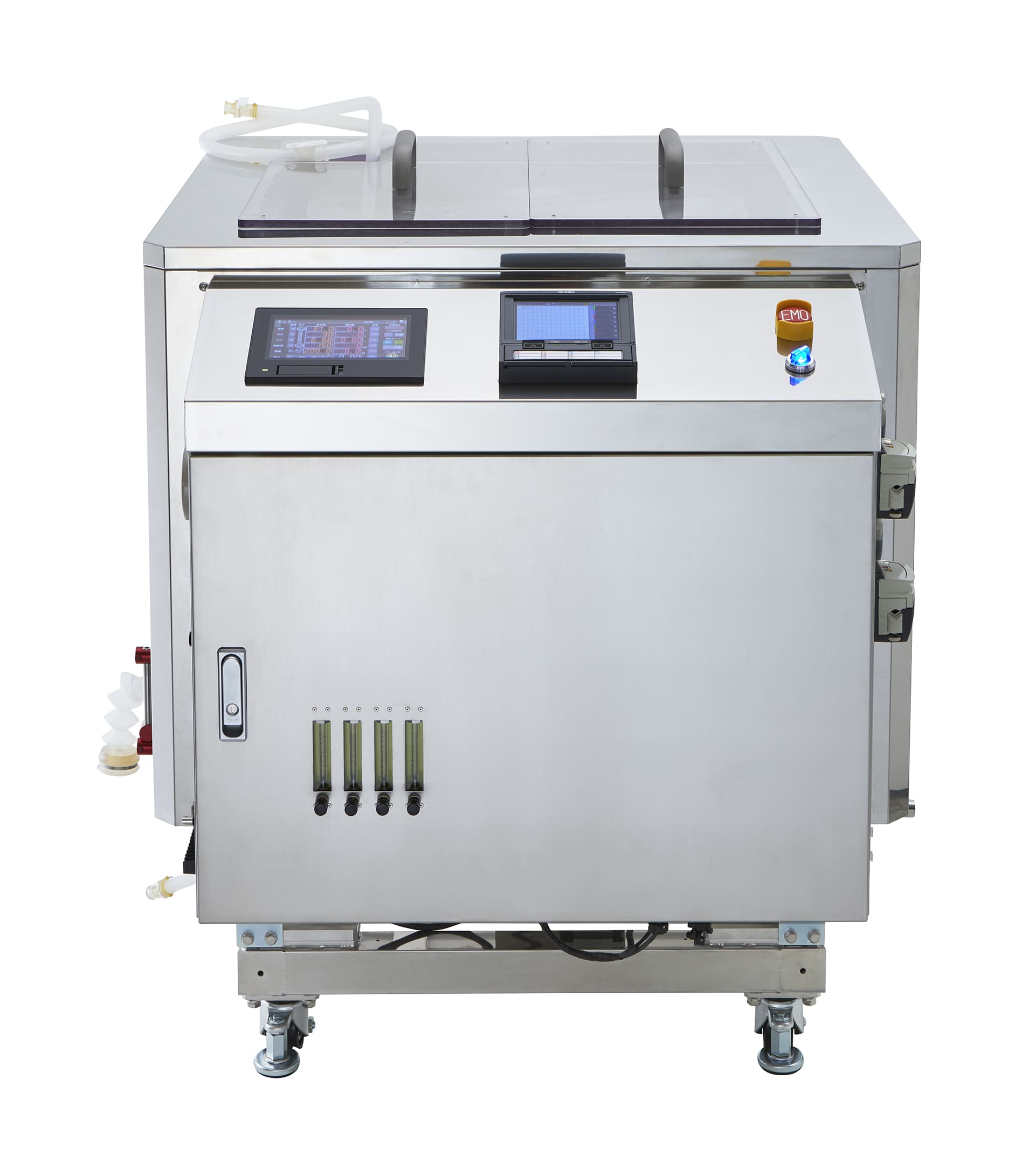

BioMixer 200 Model CWA200
Large volume single-use mixer for vaccine and regenerative medicine production.
This machine facilitates mixing process like preparing culture media for vaccine/cellular medicine production!
Details
- High mixing efficiency
BioMixer 200 is the single-use mixer with quick and efficient stirring (agitation) capability. It allows users to cut cost down and reduce the time taken for manufacturing process. - Easy to use
Improve operability thanks to the intuitive interface. - Cutomizable control function
Besides the high precision temperature control, pH/DO control can be added upon users’ request. - Japan made and solid support
This product is manufactured in Japan and uses components that are made in Japan. Also, we provide comprehensive support from troubleshooting to maintenance. - 200L bag for BioMixer 200
The dedicated disposable bag (sterilized, double layer packaging) for BioMixer 200 is available. The bag can be cutomized upon customer’s requirement.
BiSUCS 3D single-use bag
This bag is compatible with our BioMixer 200 Model CWA200 and is produced by CBC Co., Ltd. All processes of production, from film preparation through assembly, are done in Japan. Due to its design, which realizes high-torque mixing, this bag provides suitable liquid mixing. Since the bag can be customized upon users’ requests, it could meet various needs.
High torque mixer
・This bag provides high torque and efficient mixiging.
・It is suitable for uniform mixing for Tris and NaCl and so on.
Stable supply
・All manufacturing processes from file prepation through sterilization are done in Japan.
・This bag and specialized mixer BioMixer 200 can be provided together.
customiziable
・The bag is designed to expand easily in a mixier, it allows operators to improve work efficiency.
| Tank unit | |
|---|---|
| Item No. | WKN-CWA200 |
| Dimensions (mm) | W1190 x D982 x H1188 |
| Tank chamber dimensions (mm) | W690 x D640 x H700 |
| Materials | SUS304 |
| Temperature control | Water jacket |
| Temperature setting range / increment | 4 - 45C / 0.1C |
| Impeller RPM setting range / increment | 10 - 200rpm / 1rpm |
| Interface | LCD touch screen / PLC |
| Recorder | Paperless data recorder (Compliant with Part11) |
| Weight | About 200kg (unit only) |
| Power | Single phase AC100V* 50/60Hz 5A *It can be modified. |

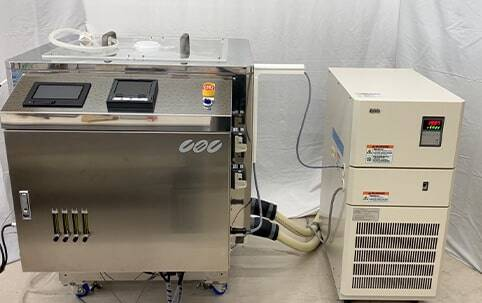

| Ciller control unit | |
|---|---|
| Dimensions | W440 x D800 x H995 |
| Materials | Chromium-free electro galvanized zinc plated steel, chemical resistance baking finish |
| Circulating / Cooling | Closed system circulating / air-cooled |
| Temperature setting range | -10.0 - 80.0C |
| Power | Triple phase AC200±20V 50/60Hz 16.3A (FLA) *It can be modified. |
| Weight | 104kg (not including circulating water) |
| Operating environment (Temperature) | 5.0 - 40.0C (No condensation) |
| Storage environment | 0 - 40.0C / 10 - 85% (No condensation) |
